Digital Repeater can automatically identify the various heading equipment output (HDT\HDM\HDG) digital heading signal, accurate display heading data, indicating heading scale; while the output NMEA-0183 signal (HDM, HDT and AD-10) supply radar, autopilot, electronic chart, AIS and other equipment.

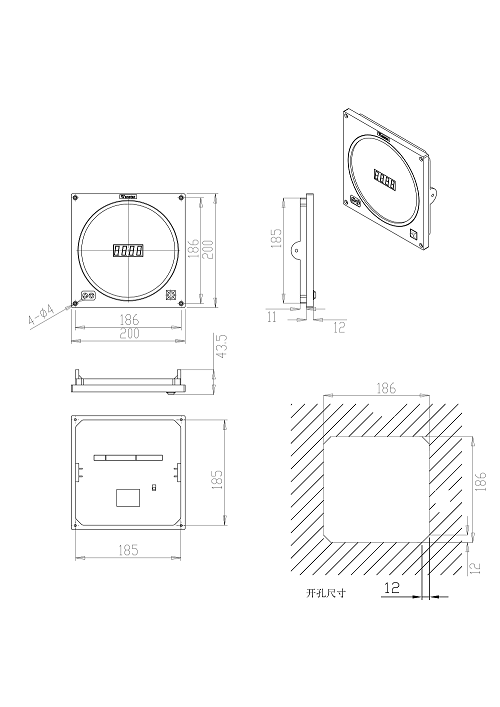

l Dimension : 200*200*27mm
l Weight : 1.2kg
l Compass safe distance ：1m
l Waterproof : IP66
l Working temperature : -20℃ to +70℃
l Humidity : lower than 95%
l Scale ：±1.5°
l Scale accuracy : 1.5°
l digital display accuracy : ± 0.2°
l Track rate : 45°/s
l Power supply : 24VDC, 0.20A
l Cable length : 1.5 meters
l Input data ：RS-422 or RS-232 NMEA 0183，4800( or 9600) baud no priority, 1 stop bit（HDT HDG HDM）
Input signal: bow signal HDT or HDM or HDG statement conforming to IEC61162-1 standard protocol, baud rate: 4800
Output signal: HDT statement according to IEC61162-1 standard protocol, baud rate: 4800
Forward transmission format:
RS422 output: Drive at least four standard IEC61162-2 input ports.
RS232 output: Drive two standard RS232 input ports.
AD-10 Output: Output conforms to Japan's special format for Noguchi.
